Product introduction
A. Type 1
1.Rail Type of Cattle Panel
Rail Type | Square | Oval | Round |
Vertical Post x 2 | 40 x 40mm x 1.6mm / 2mm | 50 x 50mm x 1.6mm | 32mm OD x 2 mm |
50 x 50mm x 2mm | 50 x 50mm x 2mm | 42mm OD x 2 mm | |
60 x 60mm x 2mm | 60 x 60mm x 3mm | 42mm OD x 2 mm | |
Horizontal Rail x 5/6 | 40 x 40mm x 1.6mm / 2mm | 60 x 30mm x 1.6mm | 32mm OD x 1.6mm |
50 x 50mm x 2mm | 80x 40mm x 2mm | 32mm OD x 2mm | |
60 x 60mm x 2mm | 115x 42mm x2mm | 42mm OD x 2mm | |
Rail | ![]() |
||
Panel |
2.Cattle Panel Type
Type | Light-Duty | Medium-Duty | Heavy- Duty | |||
Rail Number (Height) |
5 Rails 1600mm 6 Rails 1700mm 6 Rails 1800mm |
5 Rails 1600mm 6 Rails 1700mm 6 Rails 1800mm |
5 Rails 1600mm 6 Rails 1700mm 6 Rails 1800mm |
|||
Post Size | 40 x 40mm RHS | 40 x 40mm RHS | 50 x 50mm RHS | 50 x 50mm RHS | 89mm OD | 60 x 60mm RHS |
Rail Size | 40 x 40mm | 60 x 30 mm | 50 x 50mm | 80x 40mm | 97 x 42 mm | 115 x 42mm |
Length | 2.1m2.2m 2.5m 3.2m 4.0m etc. | |||||
Surface Treatment | 1. Fully hot dipped galvanized 2. Pre- Galvanized pipe then antirust spraying | |||||
Kits |
1. 2 Lugs and Pins 2. Cattle Panel Gate (Cattle Gate In Frame, Double Gate, Man Gate, Slide Gate) |
3.Recommendation Of Cattle Panel
Hot Dipped Galvanized Cattle Panel | Specifications | |||||
![]() |
1. Strong cattle panel |
60 x 60 x 2mm SHS GAL 115 x 42 x 2mm Oval Pipe, |
||||
2. Standard cattle panel |
50 x 50 x 1.6 / 2 mm SHS GAL. 80 x 40 x 1.6 / 2 mm Oval Rail |
|||||
3. Economical cattle panel |
40 x 40 x 1.6 / 2mm SHS GAL. 60 x 30 x 1.6 / 2mm Oval Rail |
|||||
4. Budget cattle Panel |
40 x 40 x 1.6mm SHS GAL. 40 x 40 x 1.6mm SHS Rail |
|||||
Noted 1. Panel lengths are standard in 2.1 2.2 2.5 3.2 4.0 m , other sizes can be customized. 2. Portable cattle yard connected by lugs and pins; 3. Permanent cattle yard connected by a post in the middle of panels or lengthen panel legs then buried into ground by using concrete. |
B. Type 2
1. Specifications
![]() |
|
Specifications |
|
1. Material | Hot dipped Galvanized round pipe |
2. Surface treatment | Galvanized, PVC coated, Powder Coated, Painted |
3. Color | Silver , Green , Brown, Yellow, Red Etc. |
4. Height | 1.6m 1.7m 1.8m etc. 5/ 6 rails |
5. Length | 2.1, 2.2, 2.5 ,3.2, 4.0 m customized |
6. Main market | USA,Australia, New Zealand, Canada,US ,European countries and Asia countries |
7. Applications | Used in protecting of animals Cattle / Horse walker |
Available Specifications Choices Custom configurations and sizes available | ||||||
Rails | Finish | Brace | Connection | Corner | Mud lug | Tube size |
4/5/6/7 | Fully galvanized | Z-bar vertical brace | Latch&Chain | Round corner | With | *1 1/2'' x 16 Gauge *2'' x 14 Gauge *1 3/4'' x 16 Gauge *2 3/8'' x 14 Gauge *2'' x 16 Gauge *2 3/8'' x 11 Gauge |
Powder coated | Fitted to drilled rails | Drop-Pins&Loops | Square corner | Without |

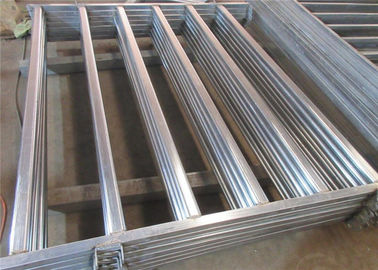

Custom size livestock metal steel fencing panels square/round/oval cattle panel
