| Place of Origin | HeBei,China |
| Brand Name | JH Livestock Handling |
| Certification | ISO9001, CE |
| Model Number | Cattle Yard Panels |

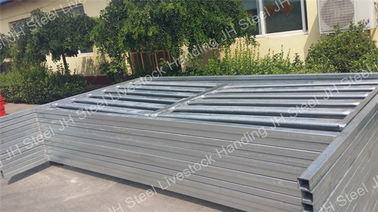

Hot Dipped Galvanized Cattle Yard Panels 5 6 Bars Cattle Horse Corral Panels
Livestock panel also called horse panel, Cattle panel and yard panel gates
Materials: high tensile 450 grade galvanised SHS
Corrosion Form: hot-dipped galvanized then zinc paint
Features: it can quickly and easily be installed, without the need to disturb the surface area by digging holes or laying foundations.
Main markets: Australia, European countries, Canada, America and Asia countries.
Description:
Elongated lug holes in brackets, for ease when connecting..
-with welded top caps and foot plates, water and dust proof
-welded "U" and "L" lugs for easy connection.
The lugs are welded to bracket all four sides, very durable.
1. Round style
| Material | Pre hot dipped galvanized steel pipe |
| Finishing (zinc coating) | More than 15 microns |
| Height x Length | 1800mm x 2100mm |
| Vertical pipe |
32mm O.D x1.6mm thickness 42mm O.D x 1.6 mm thickness |
| Horizontal rails |
32mm O.D x1.6mm thickness 42mm O.D X 1.6mm thickness (6 round rails) |
| Welding | Fully welded post brackets |
| Welds | Bull bars are fully welded, each weld is protected with epoxy paint |
2. Square tube style
| Material | Pre hot dipped galvanized steel pipe |
| Finishing (zinc coating) | More than 15 microns |
| HeightxLength | 1800mm x 2100mm |
| Vertical pipe |
50 x 50mm RHS x 1.6mm thickness 40 x 40mm RHS x 1.6mm thickness |
| Horizontal rails |
50 x 50mm RHS x 1.6mm thickness 40 x 40mm RHS x 1.6mm thickness (6 square rails) |
| Welding | Fully welded post brackets |
| Welds | Bull bars are fully welded, each weld is protected with epoxy paint |
3. Oval tube style
| Material | Pre hot dipped galvanized steel pipe |
| Finishing (zinc coating) | More than 15 microns |
| HeightxLength | 1800mm x 2100mm |
| Vertical pipe |
50 x 50mm RHS x 1.6mm thickness 40 x 40mm RHS x 1.6mm thickness |
| Horizontal rails |
30x60mm oval rail x 1.6mm thickness 40x80mm oval rail x 1.6mm thickness 40x120mm oval rail x 1.6mm thickness (6 oval rails) |
| Welding | Fully welded post brackets |
| Welds | Bull bars are fully welded, each weld is protected with epoxy paint |
4. Cattle panel gate
| Height x Length: | 2200mm x 2000mm |
| Frame: | Horizontal & Vertical pipe: 50 mm x 50 mm RHS x 1.8 mm thick with fully welded caps |
| Cattle Gate Horizontal rail: | 40 mm x 80 mm x 1.6mm thick x 6 oval rails |
| Finishing: |
Hot dipped galvanized ,zinc coating:more than 15 microns. Fully welded oval pipes, post &brackets ,heavy duty hinges |
