Australia Standard 3m Metal Stall Fronts Outdoor Portable Prefab Large Size

Certification
China Anping jinghua steel grating metal wire mesh co., ltd certification
China Anping jinghua steel grating metal wire mesh co., ltd certification
Customer Reviews
Few days ago we did an evaluation for your sample grates.The evalauation was very positive, especially your robot welds!

—— Alon

I have finally received the stable. Happy to see the quality same as sample. I promise you will get more orders soon.

—— Peter

Your service is fantastic as I just place the order on January and the goods arrived so quickly.

—— Dariimaa

I'm Online Chat Now

Australia Standard 3m Metal Stall Fronts Outdoor Portable Prefab Large Size

Australia Standard 3m Metal Stall Fronts Outdoor Portable Prefab Large Size
Australia Standard 3m Metal Stall Fronts Outdoor Portable Prefab Large Size Australia Standard 3m Metal Stall Fronts Outdoor Portable Prefab Large Size Australia Standard 3m Metal Stall Fronts Outdoor Portable Prefab Large Size

Large Image :  Australia Standard 3m Metal Stall Fronts Outdoor Portable Prefab Large Size

Product Details:
Brand Name: JHorse
Model Number: front panel
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: steel pallets
Delivery Time: 45-55days
Payment Terms: T/T, L/C, Western Union
Detailed Product Description
Color: Black, White Or Customize Material: Steel
Infill: Bamboo, Pine, HDPE, Plastic Wood Agvantage: Durable,strong, Corrosion Resistant
Surface Treatment: Hot Dip Galvanized Or Powder Coated Key Words: Horse Stable, Horse Stall
High Light:

australia standard metal stall fronts

,

3m metal stall fronts

,

bamboo stall door fronts



australia standard outdoor portable prefab large size bamboo wooden horse stable

Product Description

1. JH Standard Sliding Door Stable Range
JH Standard Sliding Door Stables Range include:
Fully hot dip galvanized finish or powder coated surface.
A full range of design and style options.
Complete welded frame construction for strength and practical installation to all building types.
Swing window & swivel feeder are optional as accessories
Wood, wire mesh, round pipe are optional as infill material.
Auto- lock and sliding systems give you a good experience

Hot Dip Galvanized High Quality Horse Stable Stalls With Steel Frame

JH Steel is the manufacturer of horse stable since 2006!

Hot Dip Galvanized High Quality Horse Stable Stalls With Steel Frame

Hot Dip Galvanized High Quality Horse Stable Stalls With Steel Frame



Hot Dip Galvanized High Quality Horse Stable Stalls With Steel Frame

Hot Dip Galvanized High Quality Horse Stable Stalls With Steel Frame





Hot Dip Galvanized High Quality Horse Stable Stalls With Steel Frame

2. Standard European Stable Range

The size of the horse and the amount of time the horse spends in the stall help determine stall size. Larger horses require more square footage than do smaller ponies to be able to turn around, lie down, and get up comfortably. A 12-foot by 12-foot stall is the standard recommendation for a 1000-pound horse. Many stables are successful with stalls slightly smaller than this, but walls less than 10 feet in length are not recommended. Generally, the stall wall length is 1.5 times the horse's length. The more time a horse spends in a stall or the more active it is, a larger stall size is justified. A divider between two standard stalls may be removed to allow more space for a mare and foal or a stall-bound horse .

An 8-foot-high stall partition is standard. Partition height needs to be at least 7V2 feet to prevent horses from getting legs over the wall . Most horses can kick as high as 7 feet. An 8-foot-tall by 4-foot-wide stall doorway opening has been the recommendation for years, although this is not often seen in stables. Stall door manufacturers typically supply a doorway opening of slightly over 7 feet with a 42- to 45-inch width. These are the dimensions of the actual open area that the horse can pass through. These smaller doorway openings are adequate for horse and handler safety.







Hot Dip Galvanized High Quality Horse Stable Stalls With Steel Frame

Hot Dip Galvanized High Quality Horse Stable Stalls With Steel Frame



3. JH Side / Partition Stable Panel
JH Side/ partition Stable Range includes:
JH produce kinds of side /partition/ back wall stable.
Customer could order fronts (only), sides, back walls panel according to your design of horse barn.
The front board and the side board are sold separately
Brackets or clips are provided as fittings for easy connection

Hot Dip Galvanized High Quality Horse Stable Stalls With Steel Frameroduct De



4. JH Protable Stable Box

Doors come in a wide variety of materials and configurations, although swinging and sliding doors are common . Doors can cover the full length of the doorway opening, be divided into two panels (Dutch door; Fig. 5.6), or can partially cover half to three-quarters of the opening, which is more common with metal mesh doors

Swing doors should open into the aisle rather than into the stall. Open swing doors decrease aisle workspace but may be latched open to alleviate this problem. They also require less hardware to function properly, but heavy-duty hinges are needed to prevent sagging. Sliding doors, in addition to the overhead track, need a stop to prevent the door from opening too far and falling off the track. They also need floor-level guides to keep the lower portion in place when the horse is pawing, leaning, or kicking at the door. Full-length doors should have less than 3 inches of clearance under them to prevent the horse from getting a hoof or leg stuck

Hot Dip Galvanized High Quality Horse Stable Stalls With Steel Frame

5.JH Barn door
JH Barn door Range includes:
Upper and lower two-part structure
"x"- shape reinforcement bars are optional
Dimension: width:1.2 meters ,Height: 2.2-2.5meters.

Hot Dip Galvanized High Quality Horse Stable Stalls With Steel Frame







Components

Hot Dip Galvanized High Quality Horse Stable Stalls With Steel Frame

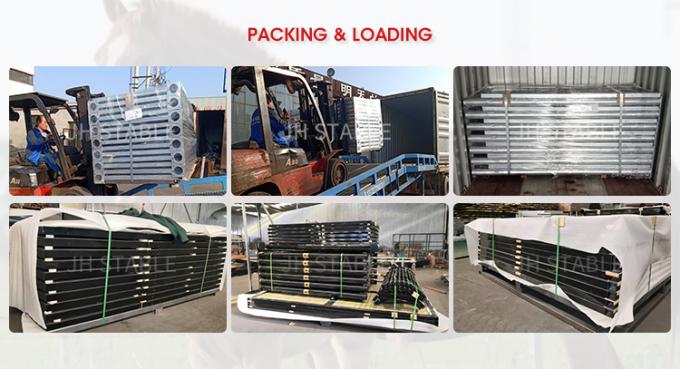

Packaging & Shipping
Selling Units: Single item
Single package size: 300X220X10 cm
Single gross weight: 226.000 kg
Package Type:
Portable Bamboo Horse Equipment Doors Box Front Panels Stable Stalls packed  into steel pallet
Lead Time:
Quantity(Pieces) 1 - 10 11 - 50 51 - 100 >100
Est. Time(days) 15 30 45 To be negotiated

Australia Standard 3m Metal Stall Fronts Outdoor Portable Prefab Large Size 10

Customer Feedback



Hot Dip Galvanized High Quality Horse Stable Stalls With Steel Frame

Company Information



Business Type Manufacturer
Company Address Anping County, Hebei, China 053600
Head Office Address No 162 Heping Street, Anping County, China
Years Estiblished 2006
Livestock Fencing Series

(1) Horse stable, horse barn window & doors, mats

(2) Cattle panel, horse round pen, related gate







JHorse Staff

Factory - 86 workers for management, producing, inspecting, packing, loading;

Offices - 28 workers for management, selling, drawing, purchasing, making documents, accountant.



Australia Standard 3m Metal Stall Fronts Outdoor Portable Prefab Large Size 12

Hot Dip Galvanized High Quality Horse Stable Stalls With Steel Frame

FAQ

FAQ

1. Are you a manufacturer or a trading company?

We are a professional manufacturer since 2006!

High quality and low price have always been our aim.

2. Can you customize or design for us?

Yes, of course. We have a professional design team that can tailor a stable for your barn.

3. How can you guarantee your quality?

We have been in this industry for 14 years and have customers from all over the world.

They all say very good to our quality. And the order is protected by Alibaba.

4. Can I test the sample?

Ok, no problem. The sample cost you paid, we will return it to you after the transaction.

5. I have no import experience, can I do it?

Yes, we will assist you to import, and consult for you the total bill for importing.

6. How can I get a quote?

Contact us with picture, size, quantity and your port, then fast quote with be sent.

7. How do I take my goods home?

You can rent a truck to pull the goods home, or pull the containers home. After unloading, return the container to the owner.

8. How to make the payment?

Telegraphic Transfer(T/T); 2.Letter of Credit(LC); 3. Credit Card; 4. Western Union

Hot Dip Galvanized High Quality Horse Stable Stalls With Steel Frame
