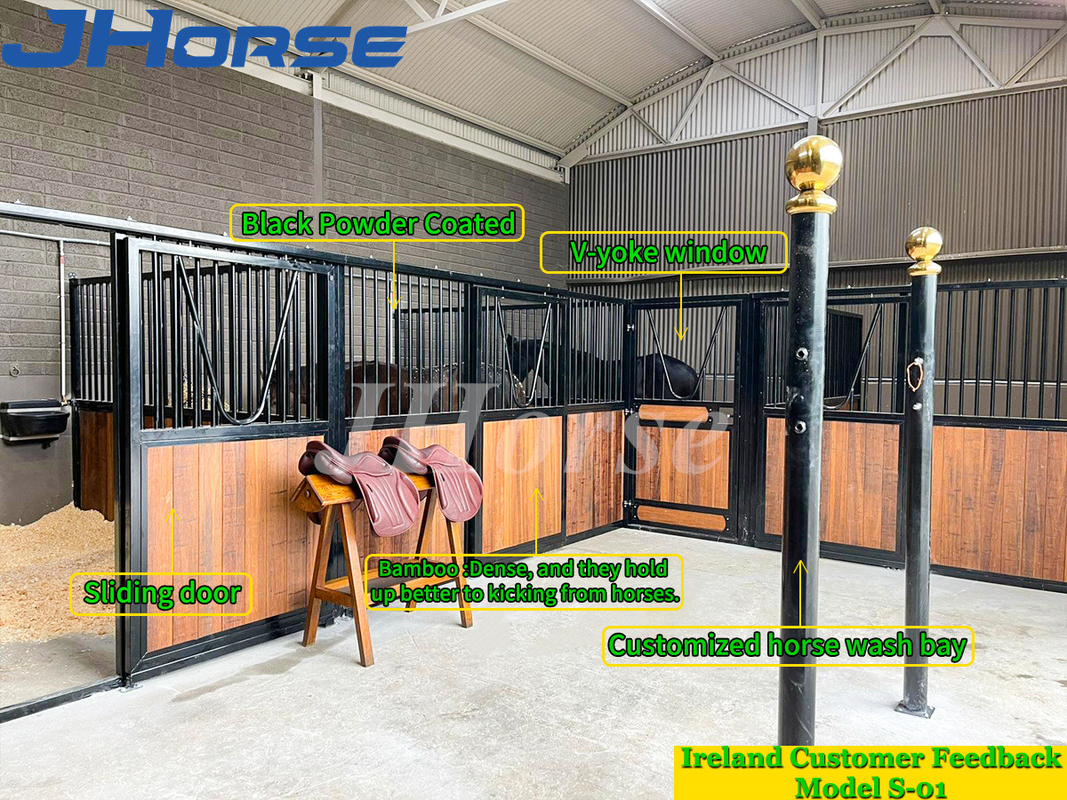

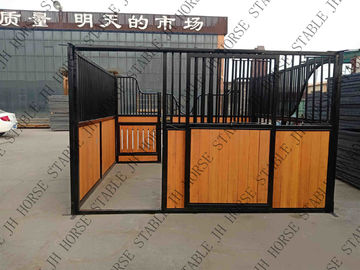

28mm Bamboo Pine Wooden Horse Stable Powder Coating Indoor Customized
According to the Canadian Agri-Food Research Council, Recommended Code of Practice for The Care and Handling of Farm Animals, a loose box should be 10'X10' (3mX3m) to 12'X12' (3.6mX3.6m) for an average size riding horse. These are minimum recommendations. If you have the resources to build larger stalls, you can, of course, build them larger. Larger horses will appreciate the extra room to move around, so if you have a draft or draft cross, adding extra space will help them move freely, and lie down without feeling cramped.
Although the recommended size for a foaling stall is the same as a regular stall, many people like more generous sized boxes for mares and foals. The easiest way to provide roomy accommodations for mares and foals is to take the partitions out between two regular stalls. So you don't have to build a stall specifically to be a foaling stall. Even if you don't plan to have a foal, it is handy to design at least one stall with this in mind.
Standing or tie stalls need to be wide enough for a horse to lie down in comfortably. Depending on the size of the horse, they should be at least 4ft to 5ft (1.5m) wide and 8ft (2.4m) long. There is usually a manger for hay at the front of a standing stall, so the width of this should be considered. A pony will need a shorter and narrower standing stall than a larger draft breed, which again will need more space.
There will also need to be a sturdy structure to tie to. It should be high enough so the horse cannot get its leg over the tie rope, but still be able to reach feed and water.
In both standing and box stalls, the walls should be solid, sturdy lumber to at least 4.6ft (1.4m) high, and above that, grill or sturdy mesh so that horses can see each other. This also helps with ventilation and light.
An 7.2-foot-high stall partition is standard. Partition height needs to be at least 7 1/2 feet to prevent horses from getting legs over the wall. Most horses can kick as high as 7 feet. Although this is not often seen in stables. Stall door manufacturers typically supply a doorway opening of slightly over 7 feet with a 42- to 45-inch width. These are the dimensions of the actual open area that the horse can pass through. These smaller doorway openings are adequate for horse and handler safety.
Horse barns are commonly built with a ceiling height of 10 to 12 feet with 8 feet being the minimum. A low ceiling not only inhibits air circulation, but also increases the chance that a horse may strike its head. In fact, many stables have open truss or rafter construction with no ceiling. In this case, the minimum height is the clearance to the lowest item on which a horse may strike its head, such as a light fixture or truss bottom chord.
The product details:
|Item||Powder Coated Horse stall|
|Other key words||horse stable /horse house/horse feeding house/indoor safety horse house|
|Each panel Size (w*h)||
4*2.2m,3.6m*2.2m,3m*2.2m ,other sizes can be customized
|Material||40*40mm, or 50*50mm|
|Advantage||Easy connection, NO need of support post|
|Horse safe, no sharp edges|
|Any other requirements, please feel free to contact us .|
