6 Horses European Horse Stalls Strong Solid Welded One Piece Frame

6 Horses European Horse Stalls Strong Solid Welded One Piece Frame
6 Horses European Horse Stalls Strong Solid Welded One Piece Frame 6 Horses European Horse Stalls Strong Solid Welded One Piece Frame

Large Image :  6 Horses European Horse Stalls Strong Solid Welded One Piece Frame

Product Details:
Place of Origin: Hebei,China
Brand Name: JH Horse Stall
Certification: ISO9001, CE
Model Number: european Horse Stalls
Payment & Shipping Terms:
Minimum Order Quantity: 10 pieces
Packaging Details: Steel pallets
Delivery Time: 20 days
Payment Terms: T/T, , L/C, Western Union, D/P
Supply Ability: 100 sets/month
Detailed Product Description
Frame: Solid Welded One Piece Finish: Hot Dip Galvanized Or Powder Coating
Customization: Available Quality: Lifetime Warranty
Type Of Door: Swinging Door, Sliding Door MOQ: 1 PC
High Light:

portable horse box stalls

,

stall front grills

Custom Large simple prefab modular 6 horse barns tie stalls for horses outdoor





Description

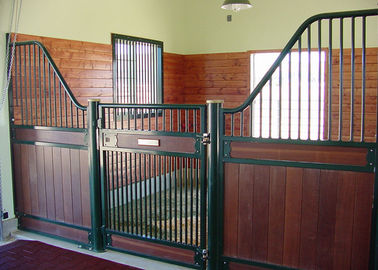

Our horse stall is an open, low stall front designed for both post and beam construction and clear span buildings. Each stall consists of two beautifully curved wings with grill tops and horizontal panels and a centered, hinged door with tightly spaced grill openings and matching horizontal panels.



Specification



1 .



Panel height 2200mm
Panel width

2950mm, 3600mmn

(customized width are also available)

Panel frame square tube 50x50mm
Panel welded wire mesh

Wire diameter: 4mm

Mesh size: 50x50mm

Gate height 2000mm
Gate width 1150mm
Gate slideway 2950mm length with 2 wheels



Featuers



  • Centered and hinged stall door with horizontal panels upper and lower and a full grill bottom
  • Mortised finger latch hidden with scalloped steel gussets
  • Adjustable latch plate
  • Wood sandwiched between double rolled channel and ends hidden with beautiful, scalloped steel gussets
  • Adjustable door hinges
  • Curved base plates made of 3/8″ thick steel
  • Upper grills 3″ O.C. and lower grills 2″ O.C.
  • Powder coated OR hot dip galvanized



Options



  • Solid flat brass finials with hidden attachments
  • Round brass ball finials
  • Partition post “hubs” for clear span structures
  • Grain feed opening
  • Rotating grain feed door with cast steel feeder
  • Night latches for extra security



Advantage



1 . Low and open stall front for the socialization on which horses thrive

2 . Designed for post and beam construction or clear span buildings

3 . Heavy gauge steel for premium security

4 . Tightly spaced grills so hooves don’t get caught

5 . Door hinges are adjustable so installation takes less time

6 . Safety finger latch lets you open the stall door from inside or outside of the stall – and with just one hand

7 . Stall post base plate doesn’t protrude into door opening, preventing a horse from stumbling
