Heavy Duty Livestock Handling Equipment Painted Flat Cattle Guard Easy Install

China Heavy Duty Livestock Handling Equipment Painted Flat Cattle Guard Easy Install supplier
Heavy Duty Livestock Handling Equipment Painted Flat Cattle Guard Easy Install supplier Heavy Duty Livestock Handling Equipment Painted Flat Cattle Guard Easy Install supplier

Large Image :  Heavy Duty Livestock Handling Equipment Painted Flat Cattle Guard Easy Install

Product Details:

Place of Origin: Hebei,China
Brand Name: JH Livestock Handling Equipment
Certification: ISO9001, CE
Model Number: Livestock Handling Equipment

Payment & Shipping Terms:

Minimum Order Quantity: 2 sets
Packaging Details: Steel pallets.
Delivery Time: 20 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 sets/month
Contact Now
Detailed Product Description
Size: 4.0m X 2.0m Finish: Galvanised, Powder Coated
Material: Steel Customization: Available
Type1: Heavy, Medium, Light Duty Type2: Galvanized,Unrated,Unrated Light

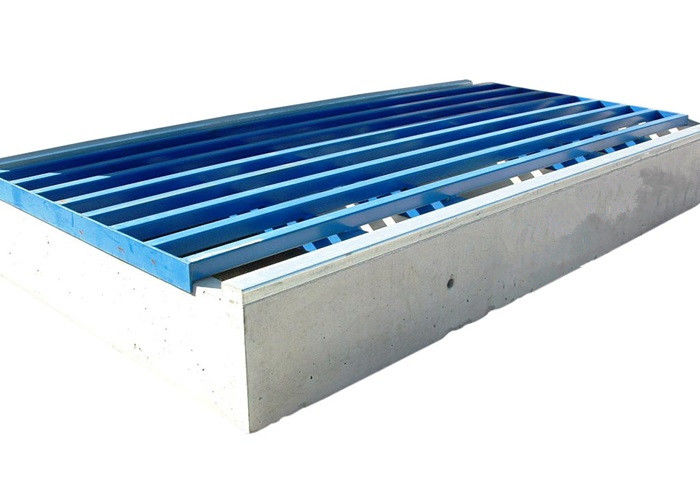

Heavy Duty painted Flat Cattle Guard Quick and easy to install


Cattle grid designs are animal friendly. Rails are in profiles which minimise injury to stock which tangle with the unit. Escape routes are provided for hedgehogs and other small animals which fall into it. Cattle Grids are used in a wide variety of locations.

The units are designed to carry a Live Load of 5Kn/sq m to comply with DoT Pedestrian and Cyclist specification. The units are fabricated from Mild Steel and are hot dip galvanised for maximum life.

Product

1. 10 Tonne Capacity Dist. Wt - 3000mm (9'10") wide x 2600mm deep
2. 20 Tonne Capacity Dist. Wt - 3600mm (12' 1/8") wide x 2600mm deep
3. 30 Tonne Capacity Dist. Wt - 4050mm (13' 3 1/2") wide x 2600mm deep
4. 40 Tonne Capacity Dist. Wt - 4500mm (14' 9 1/4") wide x 2600mm deep


 Galvanized Cattle Grid
 1. Material Galvanised RHS
 2. Size 4.0m x 2.0m
 3. Finish All welds are painted



 Unrated Cattle Grid
 1. Material Painted or Galvanised Downgrade
 2. Size 4.0m x 2.0m
 3. Finish Painted
 4. Optional Finish 65mm x 65mm x 5mm
 5. Top Rails 75mm x 75mm x 6mm
 6. Base Rails 250mm x 150mm x 4-6mm



 Unrated Light Cattle Grid
 1. Material Painted or Galvanised Downgrade
 2. Size 4.0m x 2.0m
 3. Finish Painted
 4. Top Rails 65mm x 65mm x 4mm
 5. Base Rails 125mm x 125mm x 5mm


Features

1. Durable construction
2. Engineered to Australian Standards
3. Wing sets available to suit
4. All Steel Hot Dipped Galvanised
5. 2 Separate Abutments
6. Light Weight 1.23 Ton
7. Unique shape abutments
8. All Australian Made RHS steelwork
9. Animal friendly.

Applications

Cattle grids are usually installed on roads where they cross a fence line, often at a boundary between public and private lands. They are an alternative to the erection of gates that would need to be opened and closed when a vehicle passed, and are common where roads cross open moorland, rangeland or common land maintained by grazing, but where segregation of fields is impractical.
