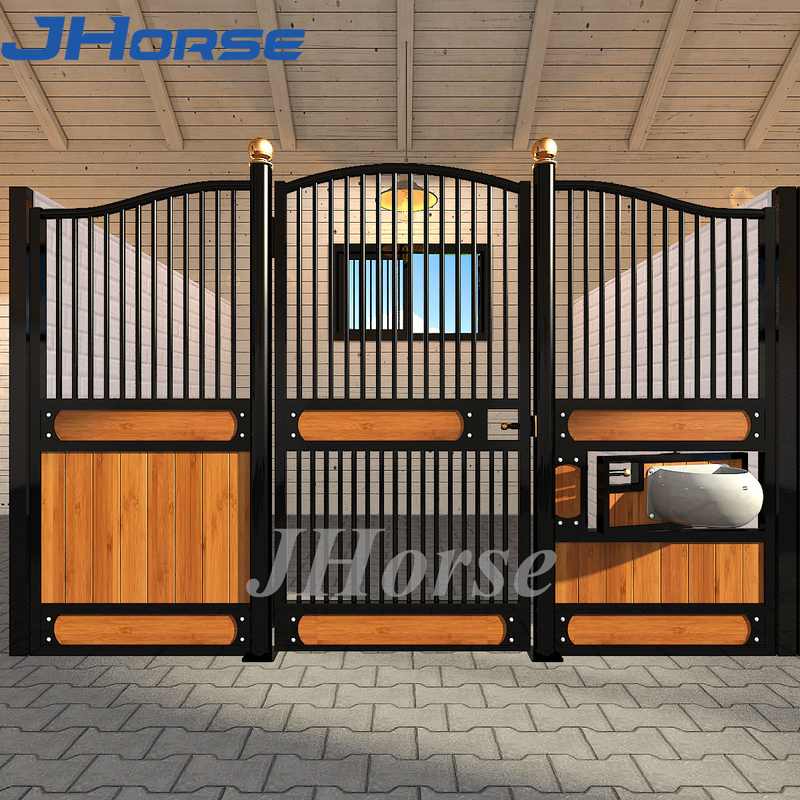

Factory Customized Metal PVC Horse Stall Panel made by jinghua company

China Factory Customized Metal PVC Horse Stall Panel  made by jinghua company supplier

Large Image :  Factory Customized Metal PVC Horse Stall Panel made by jinghua company

Product Details:

Place of Origin: Hebei,China
Brand Name: JH horse stable
Certification: ISO9001
Model Number: horse stable

Payment & Shipping Terms:

Minimum Order Quantity: 6 pieces
Packaging Details: Steel pallets
Delivery Time: 7-20days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 600Tons / month
Contact Now
Detailed Product Description
Product Name: Factory Customized Metal PVC Horse Stall Panel Made By Jinghua Company Material: Hot Galvanized Steel
Size: 2.2m Door Type: Sliding Door
Applicable Industries: Fames Surface: Powder Coated
Usage: Horse Stable

Factory Customized Metal PVC Horse Stall Panel made by jinghua company



Stall dividers are commonly 2-inchthick rough-cut oak or tongue-andgroove pine. Kicking and chewing damage is more obvious with softwoods, with most kicking damage in the lower 5 feet of the partition. Use pressure-treated lumber for the bottom boards in contact with the ground. Plywood (3⁄4-inch minimum width) is an alternative to boards. Unlike boards, which may shrink, warp, or crack, plywood dissipates kicks, giving it a better strength-toweight ratio. For a more fire-resistant alternative to wood, concrete (block or poured) and stone may be used. Concrete provides strength and durability but has been criticized for its thermal characteristics, high construction cost, and unyielding nature against kicks.

Stall partitions should be about 8- feet high and be flush with the stall sub-floor to prevent hooves from getting caught underneath. Boards can be spaced up to 11⁄ 2 inches apart to enhance air movement between stalls while discouraging encounters between stall occupants. With spaced boards, use vertical center bracing to stabilize the 12-foot-long wall and prevent the boards from breaking if kicked. Horizontal wood edges are vulnerable to being chewed by horses unless capped with metal. Stall walls do not have to be solid all the way to the top. An open panel design at the top allows for better ventilation and easy observation of the horse. It also allows horses to see their companions and other barn activities to decrease boredom and vices. An open panel partition has solid materials along the bottom 48 to 60 inches with an open panel on top. Bars of 3⁄ 4 to 1-inch diameter pipe, or equivalent, are common. Place bars no more than 3 inches apart or use a heavy-gauge wire mesh with approximately 2-inch openings. Metal electrical conduit is not strong enough for bars. To keep hooves from getting stuck between the openings, be sure the bar material is reinforced so it will not bend when kicked and allow the hoof to go through and be trapped. Some horses behave better if they can not see their neighbors, in which case, a temporary solid panel (plywood, for example) can be installed over the bars or mesh.

Sliding horse stall doors are a popular option for many horse barns. Since sliding doors do not swing outward into the barn aisle they provide a major space saving advantage. For this reason, sliding horse stalls are ideal for busy facilities where multiple horses are frequently coming and going. They also make a great choice if you are dealing with a narrow barn aisle in your facility.



There are many ways to customize sliding horse stall fronts. Horse stall doors can be designed very open, very closed, or a combination of both. By adding an opening, either yoke or square with corresponding fill piece, you can enclose or secure your horse in the stall as needed. Take a look at the many options we have available. We can also tailor any of our standard door horse stall fronts to suit your needs.



Sliding stall fronts must be supported by an overhead track. Some people familiar with the traditional style horse stall door would argue these can become difficult to slide over time and are plagued with problems. Our track and roller design will not build up with debris as many other track systems do as our sealed bearing rollers require no maintenance. This is the best system on the market for sliding horse stall doors.



If you are still unsure about which style of stall front is right for your barn, please give us a call. We would be happy to discuss our different stall lines and help you determine the best product for your barn.





The advantage:



1.Fully hot dip galvanized finish or powder coated surface.
2.A full range of design and style options.
3.Swing window & swivel feeder are optional as accessories.
4.Wood, wire mesh, round pipe are optional as infill material.
5.Auto- lock and sliding systems give you a good experience



Factory Customized Metal PVC Horse Stall Panel  made by jinghua company
