Standard Outdoor Livestock Loading Ramp , 4.7m Deluxe Portable Sheep Ramp

China Standard Outdoor Livestock Loading Ramp , 4.7m Deluxe Portable Sheep Ramp supplier
Standard Outdoor Livestock Loading Ramp , 4.7m Deluxe Portable Sheep Ramp supplier Standard Outdoor Livestock Loading Ramp , 4.7m Deluxe Portable Sheep Ramp supplier

Large Image :  Standard Outdoor Livestock Loading Ramp , 4.7m Deluxe Portable Sheep Ramp

Product Details:

Place of Origin: HeBei,China
Brand Name: JH Cattle Loading Ramp
Certification: CE,IOS9001
Model Number: Cattle Loading Ramp

Payment & Shipping Terms:

Minimum Order Quantity: 2 sets
Packaging Details: Steel pallets
Delivery Time: 20 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 sets/month
Contact Now
Detailed Product Description
Material: Steel Type: Heavy, Medium, Light Duty
Benefits: High Tensile Pressed Metal Galvanised Application: Loading And Unloading Of Cattle From Trucks
Provide: Supplied With Walkways On For Added Safety.

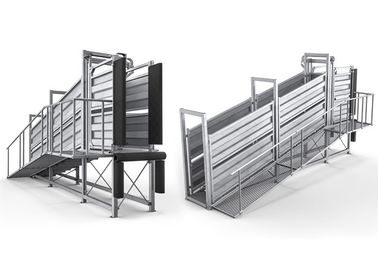

Standard Outdoor 4.7m Deluxe Cattle Cow Load Ramp With Non Slip Walkway




All Livestock cattle loading ramp can be customized according to your requirements or drawings.
Standard Outdoor 4.7m Deluxe Cattle Cow Load Ramp is a unit that is used for the loading and unloading of cattle from trucks. It is an important item as nearly every cattle handling stockyard has one and sale yards have many. Typically the loading ramp is used to elevate cattle to the height of the trailer.
A well-designed cattle loading ramp is essential on any property running cattle.


Specifications

Fully adjustable and manufactured from heavy duty stainless steel, Standard Outdoor 4.7m Deluxe Cattle Cow Load Ramp comes in curved and straight pieces so you can create a path that cooperates with the natural movement actions of your livestock while still allowing for an efficient loading process.



 Standard Outdoor 4.7m Deluxe Cattle Cow Load Ramp With Non Slip Walkway
 1. Lenght  3.6m
 2. Overall Height  1.5m
 3. Frame  50mmx50mmx2.00mm
 4.Side Panels  6x50x50x2.00mm ( side gal sheeting1.5mm thick)
 5. Floor  HDG 3mm checker plate with steel struts for better grip
 6. Finish  Pre-galvanized, HDG after fabrication or as client requst



There are several styles of ramp. These are single deck, double deck, and a dump.
The single deck is the most common as even double deck trailers can still be loaded and unloaded from these.
For larger operations were a large amount of loading and unloading is done a double deck ramp is considered. These reduce loading and unloading time by not having to use the internal ramp of a double deck trailer. Also by alternating groups of cattle between the top and bottom decks both they can be both loaded simultaneously.



Advantages

1. Manual Welding (Professional welding)
Your yard system is only as strong as it's weakest link (or weld). With any our company product you can buy with confidence knowing each component is manufactured by a team of experenced fabricators, equipped with knowledge and understanding of the product's intend on-farm use.

2. Short delivery time
Industry leading inventories are supported by full scale fabrication including sawing, shearing, forming, welding, punching, drilling, plasma cutting, burning, rolling and additional custom fabrication for specialized applications.


Product Uses


Standard Outdoor 4.7m Deluxe Cattle Cow Load Ramp features a full multi tread galvanised steel floor, overhead bracing, sleeves, siggots and height adjustable front bumper board. Height adjustable from box trailer through to truck.
Standard Outdoor 4.7m Deluxe Cattle Cow Load Ramp is available in different heights, widths and bar or rail thickness to suit different requirements.

Features & Benefits



1. Heavy Duty Construction, manufactured from 115mm x 42mm non-bruise oval rail

2. High tensile pressed metal galvanised sides, adding strength and reducing noise

3. Hardwood timber floor

4. Overhead bracing, for additional strength

5. Now with Spring assisted adjustable section which reduces the need for the adjustment bar. This will reduce the weight needed by the operator to adjust the platform reducing the risk of a strain injury. Also reduces the risk of the adjustment bar in transport becoming loose and a load restraint issue.

6. Base & front frame now manufactured with 65x65x2mm for improved strength.

7. Forklift hoops on base for ease of loading and handling.

8. These also can be supplied with walkways on for added safety.



 Standard Outdoor Livestock Loading Ramp , 4.7m Deluxe Portable Sheep Ramp
