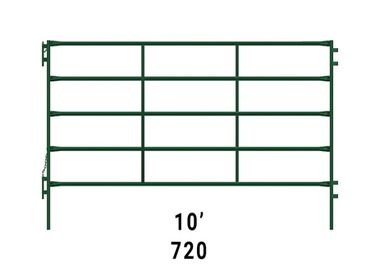

4 Gauge Livestock / Horse Corral Panels Anti Dust Green Painting Finishing

China 4 Gauge Livestock / Horse Corral Panels Anti Dust Green Painting Finishing supplier
4 Gauge Livestock / Horse Corral Panels Anti Dust Green Painting Finishing supplier 4 Gauge Livestock / Horse Corral Panels Anti Dust Green Painting Finishing supplier 4 Gauge Livestock / Horse Corral Panels Anti Dust Green Painting Finishing supplier

Large Image :  4 Gauge Livestock / Horse Corral Panels Anti Dust Green Painting Finishing

Product Details:

Place of Origin: Hebei,China
Brand Name: Jh Livestock Handling
Certification: ISO9001, CE
Model Number: Horse Corral Panels

Payment & Shipping Terms:

Minimum Order Quantity: 50 pieces
Packaging Details: Steel pallets
Delivery Time: 20 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 pieces/month
Contact Now
Detailed Product Description
Features: Safe For Horse And Rider Type: Portable
Finish: Galvanized, Painted Common Tube: 14 Gauge, 16 Gauge
Zinc Coating: More Than 15 Microns Welding: Fully Welded Post & Brackets, Heavy Duty Hinges

 Green Painting 6 8 10 12 16 24 Ft Foot 4 Gauge Livestock Cattle Horse Corral Fence Panels





1. Oval Rails Metal Galvanized Cattle Corral Panels


The most popular cattle fence panel is the oval pipe which is also the strongest fencing
among the three types.
Vertical frame RHS40mm x oval 30x60mm
Vertical frame RHS40mm x oval 40x80mm
Vertical frame RHS50mm x oval 40x80mm

2. Welding Processing of Cattle Corral Panels


Firstly, we prepared the pipe (square pipe or the round pipe, the elliptic).
Then put the pipe on the welded shaping machine, the pipe are galvanized,
welded the pipe together.
Then make the spot smoothing;
Then silver painted.


3. Square Rails Metal Galvanized Cattle Corral Panels


1) The square post is also an affordable cattle fence panel
2) More durable than a round one
3) Pipe size can be RHS40mm or RHS50mm

4. Round Pipe Metal Galvanized Cattle Corral Panels

Round post its low price
The ability to fill one container in large numbers during shipping which means reduced
transportation costs;
Pipe size can be 32mm, 40mm, 42mm, 48mm etc.


5. According to Horizontal Rail Type,there are round pipe panel, square pipe panel, oval pipe panel as below.


Cattle Panel



Material Pre hot dipped galvanized steel pipe
Zinc coating More than 15 microns
Welding Fully welded post & brackets, heavy duty hinges
Welds Each rail/bar is fully welded, and protected with epoxy paint
Accessories Steel caps, lugs, feet and 2 pins


1) Round Pipe Style Specification



Size Height: 1.6m, 1.8m, etc.
Length: 2.07m, 2.09m, 2.1m, etc.
Vertical pipe 32mm O.D x 1.6mm thickness
42mm O.D x 1.6mm thickness
Horizontal rails 32mm O.D x 1.6mm thickness
42mm O.D x 1.6mm thickness
Rails 1.8m height with 6 bars/rails
1.6m height with 5 bars/rails


2)Square Pipe Style Specification



Material Pre hot dipped galvanized steel pipe
Zinc coating More than 15 microns
Size Height: 1.6m, 1.8m, etc.
Length: 2.07m, 2.09m, 2.1m, etc.
Vertical pipe 50 x 50mm RHS x 1.6mm thickness
40 x 40mm RHS x 1.6mm thickness
Horizontal rails 50 x 50mm RHS x 1.6mm thickness
40 x 40mm RHS x 1.6mm thickness
Rails 1.8m height with 6 bars/rails
1.6m height with 5 bars/rails


3)Oval Pipe Style Specification



Material Pre hot dipped galvanized steel pipe
Zinc coating More than 15 microns
Size Height: 1.6m, 1.8m, etc.
Length: 2.07m, 2.09m, 2.1m, etc.
Vertical pipe 50 x 50mm RHS x 1.6mm thickness
40 x 40mm RHS x 1.6mm thickness
Horizontal rails 30x60mm oval rail x 1.6mm thickness
40x80mm oval rail x 1.6mm thickness
40x120mm oval rail x 1.6mm thickness
Rails 1.8m height with 6 bars/rails
1.6m height with 5 bars/rails


4)Gate Specification



Cattle Panel Gate 2200mm x 2000mm (Height x Length)
Frame Horizontal & Vertical pipe: 50 mm x 50 mm RHS x 1.8mm thickness with fully welded caps
Cattle Gate
Horizontal Rails
40mm x 80mm x 1.6mm thickness, 6 pieces oval rails
Man Gate Size: 2200mm x 750mm (Height x Inner Width)
Pipe: 50 x 50 x 2mm
Finishing Pre hot dipped galvanized material
Zinc coating: more than 15 microns
Fully welded oval pipes, post & brackets, heavy duty hinges



6. Main Markets



Australia, European countries, Canada, America and Asia countries.



7. Application



Farm corral,keep animals safe and protect your farm fields from wild animals or
thieves. We have our own factories which manufacturing tube,pipe,steel channel and other steel
accessories,free customization.


8. Other Livestock Panels or Round Pen size


Cattle Corral Panels - 5 Bar rails1.6m High, 6 Bar Rails 1.8m High or 7 Bar 1.6m & 8 Bar 1.8m high panels
Available components include:
- 1.4m Panel
- 1.8m Panel
- 2.1m Panel
- 3m Panel
- 2.1m Gate
- 3m Gate
- 4.2m Double Gate
- 2.1m Man Gate in Panel
- Man Gate
- Swing Race Gate
- Sliding Race Gate
- Race Bow
- Adaptor Post



9. Surface treatment



PVC coated, Powder coated, Painted. and the color depend on your choice.
