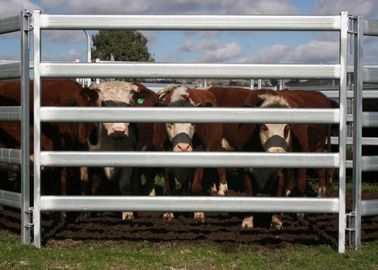

High Strength Cattle Yard Panels Excellent Water / Dust Resistance

China High Strength Cattle Yard Panels Excellent Water / Dust Resistance supplier
High Strength Cattle Yard Panels Excellent Water / Dust Resistance supplier High Strength Cattle Yard Panels Excellent Water / Dust Resistance supplier

Large Image :  High Strength Cattle Yard Panels Excellent Water / Dust Resistance

Product Details:

Place of Origin: Hebei,China
Brand Name: JH Livestock Handling
Certification: ISO9001, CE
Model Number: Cattle Yard Panels

Payment & Shipping Terms:

Minimum Order Quantity: 50 pieces
Packaging Details: Steel pallets
Delivery Time: 20 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 pieces/month
Contact Now
Detailed Product Description
Features: Avoid Cattle Bruising Type: Heavy, Medium, Light Duty
Finish: Galvanised, Painted Dimension: Height:1.8m;length:2.1m,2.4m (economical) Height:1.5m,1.8m;length:2.4m,3.0m(heavy Duty)
Material: Hot Dipped Galvainzed Square Pipe, Oval Pipe And Round Pipe And RHS.

Portable Pasture Steel Metal Stock Feedlot Cattle Pen Fencing Panels

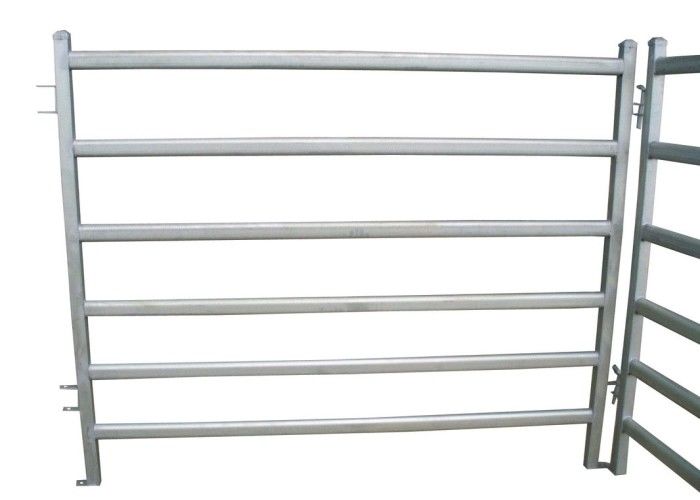

1. Features of cattle panels



1> 1.8m high with 6 bars/rails or 1.6m high with 5 bars/rails.

2> with welded top caps and foot plates, water and dust proof

3> welded lugs for easy connection.The lugs are welded for all four sides, very durable and safe.

4> footplate on the panel,can cement the panels on the ground by nails.

5> 2xjoining pins are supplied for each panel

6> Easily assembled & disassembled



cattle fence panel
Material hot dipped galvainzed square pipe, oval pipe and round pipe and RHS.
Dimension

height:1.8m;length:2.1m,2.4m (economical)

height:1.5m,1.8m;length:2.4m,3.0m(heavy duty)

Vertical Pipe

RHS:40 X 40 X 1.5 mm or round pipe:40 x 1.5 mm(economical)

RHS:50 X 50 X 2.0 mm or round pipe:60 x 2.0 mm(heavy duty)

Horizobal Pipe

oval pipe:80 x 40 mm;thickness:1.6 mm (economical)

oval pipe:80 x 40 x2.0 mm(heavy duty)

Bars/Rails 4 bars/rails 6 bars/rails
Assessories with hugs ,caps and pins
Advantage fence panel is light,easy to transport and install,ventilate diaphanous; high strenth and tensil strengthgood pressure resistance,corrosion resistance and weather resistance;anti-oxidzing property



2. The standard specification of cattle panels



(1)5 Bar 1.6m High

Panel 1.4m,1.8m,2.1m,2.5m,3m
Gate 1.8m,2.1m,2.5m,3m,4.2m Double,2.1m Man,Swing Race ,Sliding Race
Bow Race
Post Adaptor

(2) 6 Bar Cattle1.8m high

Panel 1.4m,1.8m,2.1m,2.5m,3m
Gate 2.1m,3m,4.2m double,2.1m Man,Man,Swing Race,Sliding Race,
Bow Race
Post Adaptor

(3) Portable cattle yard gate

Gate Frame
Pins 2XJoining
Frame 2mX2m
Height 1.6m
Length 2m,2.1m
Bull Rail 6X75X40



3. The standard specification of horse panels



horse panel. Designed with safety, usability and functionality in mind. This is the biggest selling horse panel in the USA and is now selling world wide as it is recognized as a stand out in horse and rider safety.

· Quadraform™ Tubing,

· Single piece vertical stays through drilled horizontal rails for extra strength,

·J-Legs increase portability and help keep panel on top of ground in wet or boggy conditions,

·Chain connectors offer increased versatility and safety by eliminating foot traps,

· Connects to any other brand of panel with no special connectors or wire needed.

(1)Horse panels

Height 1.8m
Length 2.1m
Pins 2.2m wide pin to pin,2X16mm solid pins
Rails 6Oval Rails 60mmX30mm,40mmX40mm Square Rails
End Post 40mmX40mm

(2)Horse Round Yards

Diameter 16m,18m,20m
Height 1.6m,1.8m
Rails 3,5,6
Bow Strong high-bow
Request Extra panels available
