Heavy Duty Livestock Gates And Panels , Wire Mesh Galvanized Farm Gates

China Heavy Duty Livestock Gates And Panels , Wire Mesh Galvanized Farm Gates supplier
Heavy Duty Livestock Gates And Panels , Wire Mesh Galvanized Farm Gates supplier Heavy Duty Livestock Gates And Panels , Wire Mesh Galvanized Farm Gates supplier

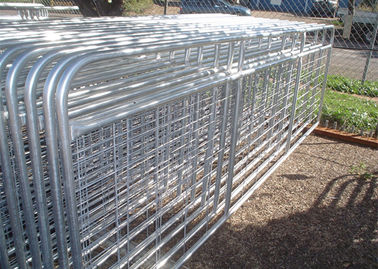

Large Image :  Heavy Duty Livestock Gates And Panels , Wire Mesh Galvanized Farm Gates

Product Details:

Place of Origin: Hebei,China
Brand Name: JH Steel Farm Gates
Certification: ISO9001, CE
Model Number: Steel Farm Gates

Payment & Shipping Terms:

Minimum Order Quantity: 50 pieces
Packaging Details: Steel pallets
Delivery Time: 20 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 pieces/month
Contact Now
Detailed Product Description
Material: Low Carbon Steel Finish: Galvanised, Painted
Type: I Type,V Type,N Type Frame Pipe: 32mm*2mm
Wire Diameter: 5.0mm Height: 1170mm

Heavy Duty Galvanized Metal Sheet Livestock Farm Gate metal fences and gates

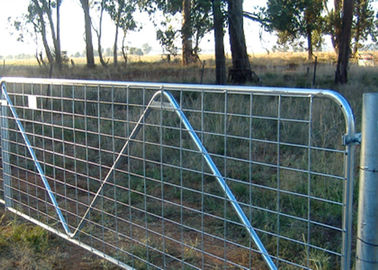

Whites Rural "N" Stay Farm Gates offer increased strength with a diagonal support brace running from the bottom to top corner.

Consistently high-quality gates manufactured from high quality galvanised pipe. The pipe is galvanised on the inside as well as the outside to provide maximum protection and a long working life.



Applications


The pipe used on Whites Wires Mesh Gates is a uniform 25NB. Whites Wires does not cut corners and provides consistently high quality gates.



Whites Wires Mesh Gates are part of Whites' contractor grade rural fencing solutions, made to exacting standards from the some of the best materials available, and quality tested to ensure trouble-free fencing that is designed to last.



Specification



1. Our metal field / farm gates are 1.15m high and have a hanging stile of 50 x 25mm box section

2. A slam stile of 50 x 25mm box section

3. The top and bottom rails are 41.5mm tube, with middle rails which are 32mm tube.

4. Adjustable hinges and padlockable sliding latch

5. Welded mesh specification is heavy 600mm high 50x50x4mm galvanised, fitted to lower part of gate



                                                                       Farm Gate

 1. Wire diameter  5mm
 2. Mesh opening  100*200mm
 3. Frame pipe  32mm*2mm
 4. Height  1170mm
 5. Length( Feet)  6', 8', 10', 12', 14', 16'
 6. Length( mm)  900mm, 2400mm, 3000mm, 3600mm, 4200mm, 4800mm



                                                               N stay/brace farm gate

 Nominal (mm & ft)

 Actual (mm)

 Weight (Kg)

 Weld Mesh Nom. (mm)

 3000 (10’0”)

 3000

 24

 200x100x5

 3600 (12’0”)

 3610

 28

 200x100x5

 4200 (14’0”)

 4220

 32

 200x100x5

 4800 (16’0”)

 4830

 36

 200x100x5



Heavy Duty Livestock Gates And Panels , Wire Mesh Galvanized Farm Gates
