Ranch Temporary Cattle Yard Panels Quick Pin Latch System Hook Up

China Ranch Temporary Cattle Yard Panels Quick Pin Latch System Hook Up supplier
Ranch Temporary Cattle Yard Panels Quick Pin Latch System Hook Up supplier Ranch Temporary Cattle Yard Panels Quick Pin Latch System Hook Up supplier

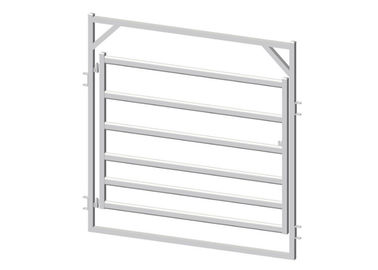

Large Image :  Ranch Temporary Cattle Yard Panels Quick Pin Latch System Hook Up

Product Details:

Place of Origin: HeBei,China
Brand Name: JH Livestock Handling
Certification: ISO9001, CE
Model Number: Cattle Yard Panels

Payment & Shipping Terms:

Minimum Order Quantity: 50 pieces
Packaging Details: Steel pallets
Delivery Time: 20 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 Pieces/month
Contact Now
Detailed Product Description
Features: Avoid Cattle Bruising Material: Steel Pipe
Finish: Galvanised, Painted Type: Heavy, Medium, Light Duty
Hook-up: Quick Pin-latch System Related: Full Range Of Cattle Yards

Building Ranch Used Steel Metal Temporary Portable Cattle Pens



Metal Temporary Portable Cattle Pens, or Horse panels,or corral panels are made from heavy duty galvanized steel pipes, which are welded together by vertical posts and horizontal rails/bards to form a sturdy structure.



Each panel has a lug welded on both sides - two double lugs on one side and two single lugs on the opposing side.They connect to each other with high tolerance pins that provide optimum movement with minimum rattle.All welds are welded in a horizontal position ensuring consistency and penetration.



The Type of Metal Temporary Portable Cattle Pens



                                                          Metal Temporary Portable Cattle Pens



              Light-duty

           Medium-duty

          Heavy-duty

Rail Number

(Height)

5 Rails 1600mm

6 Rails 1700mm

5 Rails 1600mm

6 Rails 1700mm

5 Rails 1600mm

6 Rails 1700mm

Post Size

40x40mm RHS

40x40mm RHS

50x50mm RHS

50x50mm RHS

89mm OD

60x60mm RHS

Rail Size

40x40mm

53x35mm

50x50mm

75x40mm

97x42mm

115x42mm



The popular size



                                                           Metal Temporary Portable Cattle Pens
 Rail Type  Vertical Post *2  Horizontal Rail*5/6
 Square  40*40*1.6mm/2mm  40*40*1.6mm/2mm
 50*50*2mm  50*50*2mm
 60*60*2mm  60*60*2mm
  Oval  50*50*1.6mm  50*35*1.6mm
 50*50*2mm  75*40*2mm
 60*60*3mm  115*42*2mm
  Round  32mmOD*2mm  32mmOD*1.6mm
 42mmOD*2mm  42mmOD*2mm
 42mmOD*2mm  32mmOD*2mm



Ranch Temporary Cattle Yard Panels Quick Pin Latch System Hook Up

                                         Round Pipe

                                Square Pipe



Advantages



1. Robot welding

Our company has advanced equipment to meet the needs of Cattle panel ,so the quality of our products

is excellent .



2. Manual Welding (Professional welding)


Metal Temporary Portable Cattle Pens is only as strong as it's weakest link (or weld). With any our company product you can buy with confidence knowing each component is manufactured by a team of experenced fabricators, equipped with knowledge and understanding of the product's intend on-farm use.



3. High Zinc (>100g/m2)

When other steel manufacturers galvanise they use just a quarter of the zinc that our steel manufacturers use per unit of steel, Other manufacturers are not required to meet Australian Standards.



4. Short delivery time

Industry leading inventories are supported by full scale fabrication including sawing, shearing, forming, welding, punching, drilling, plasma cutting, burning, rolling and additional custom fabrication for specialized applications.



Specifications



 Metal Temporary Portable Cattle Pens

 1. Height x Length  1.8m x 2.1m, 1.6 x 2.1m, 1.8m x 2.4m and so on
 2. Pipe style  Round pipe or square tube or oval tube
 3. Pipe specification  32mmO D, 40mmO. D, RHS40mm, 30x60 42x115 oval tube etc.
 4. Package details  In steel pallet
 5. Anti Corrosion Form  Hot Dipped Galvanized
 6. Frame Finishing  Powder Coated
 7. Thickness  1.6mm/2.0mm
 8. Vertical post  Round, square
 9. surface treatment  Galvanized steel; zinc paint on welds
 10.portable ramp  Size styles can be customized


Product Uses



Metal Temporary Portable Cattle Pens are widely used in animal husbandry to raising livestocks. The connection is very flexible, every panel has lugs so you can connect the panels according to your need.

Metal Temporary Portable Cattle Pens can be formed with pieces of panels jointed with accessories. Light duty livestock cattle steel fence panels are easy to install and dismantle. They are widely used to enclose and protect cattle, sheep,goat,horses in farmland, paddocks, arenas, stables, etc.
